US $57.85
There are 2 options "4K 60Hz" or "4K 30Hz",
The appearance of the two products is the same, but the maximum supported resolutions are different.
Please choose according to your needs and we will send you the options as you purchased.

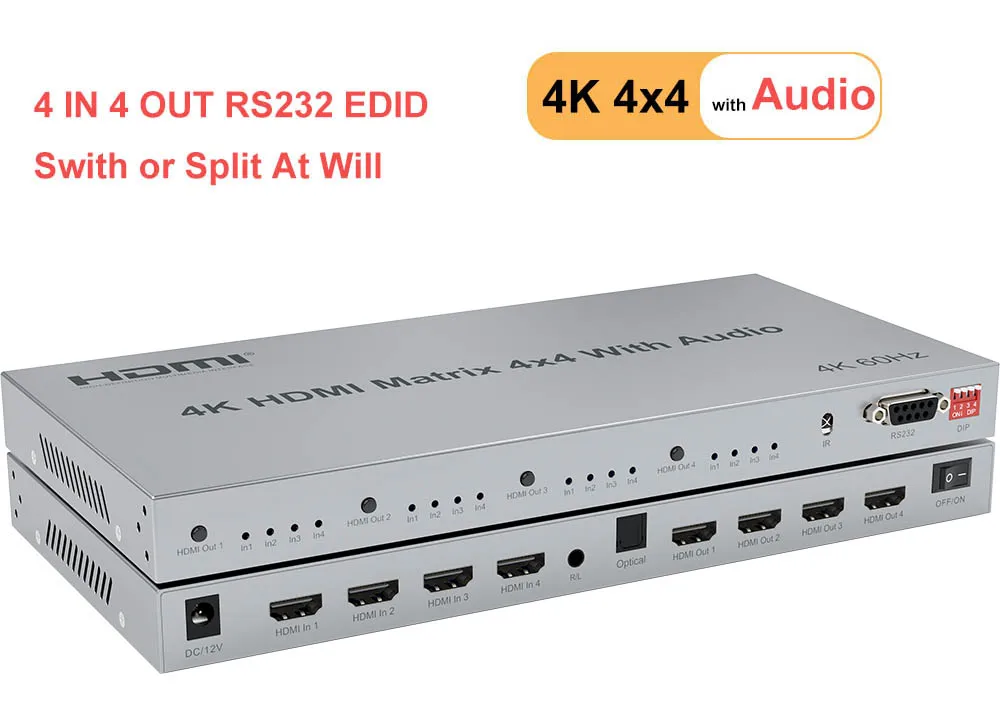

NEW ARRIVAL HDMI Matrix 4x4 With Audio (4K@60Hz)
Qkens New product,High quality,buy with confidence
This HDMI matrix 4x4 can connect 4 HD signal sources to 4 HD display terminals with optical fiber and stereo
headphone output at the same time via HDMI out 1 port.
This matrix allows 4 HDMI devices to be switched or split easily to 4 HDMI monitors or projectors.
This HDMI matrix support lossless transmitting and are widely used in space and security concerns, data center
control, information distribution, conference room presentation, school and corporate training environments.
Features :
* Very compact structure;
* Stable and reliable;
* Via HDMI out1, support 3.5mm earphone jack and optical output at same time;
* Economical and cost-effective;
* Support 3D;

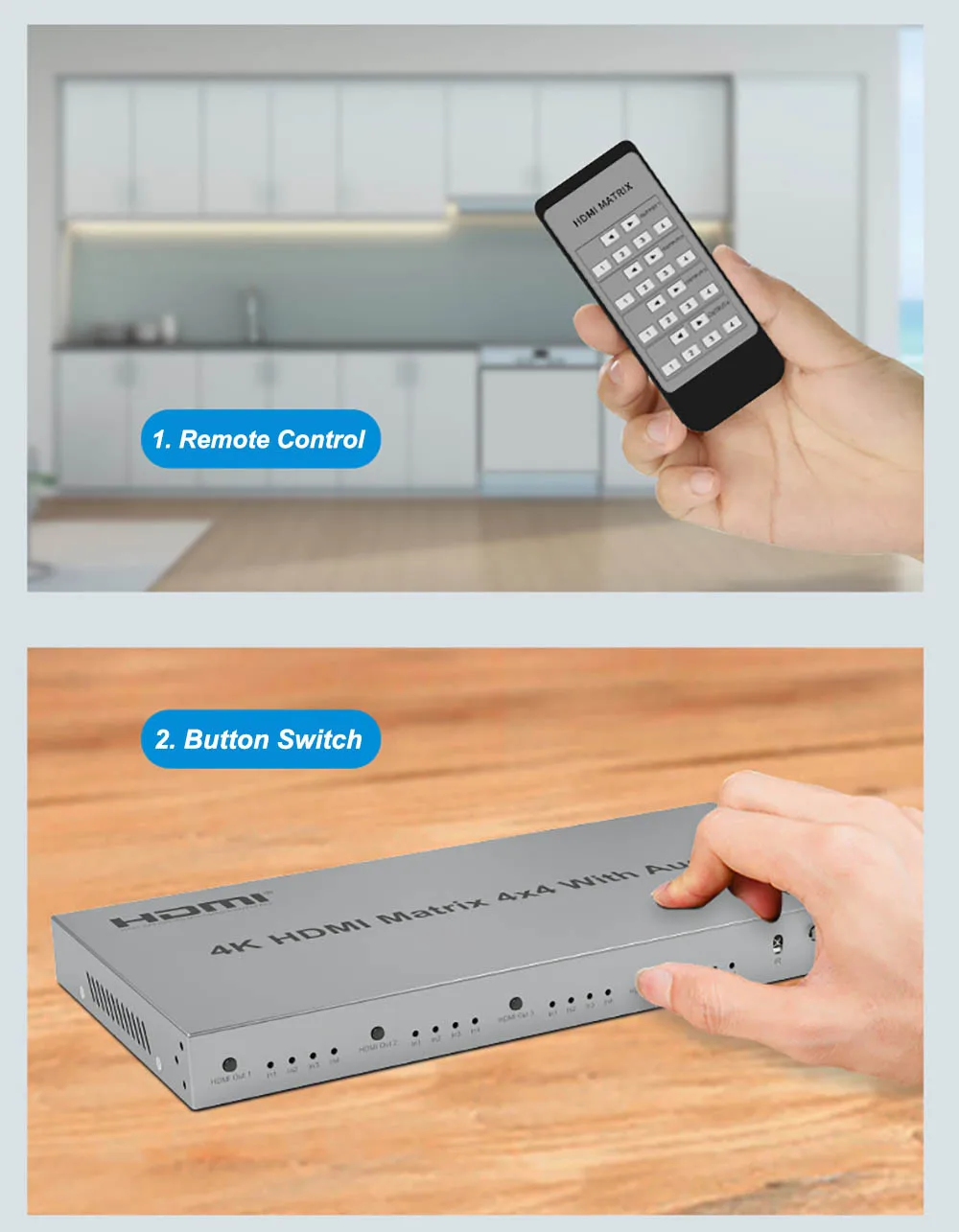

* Support IR Remote Control;

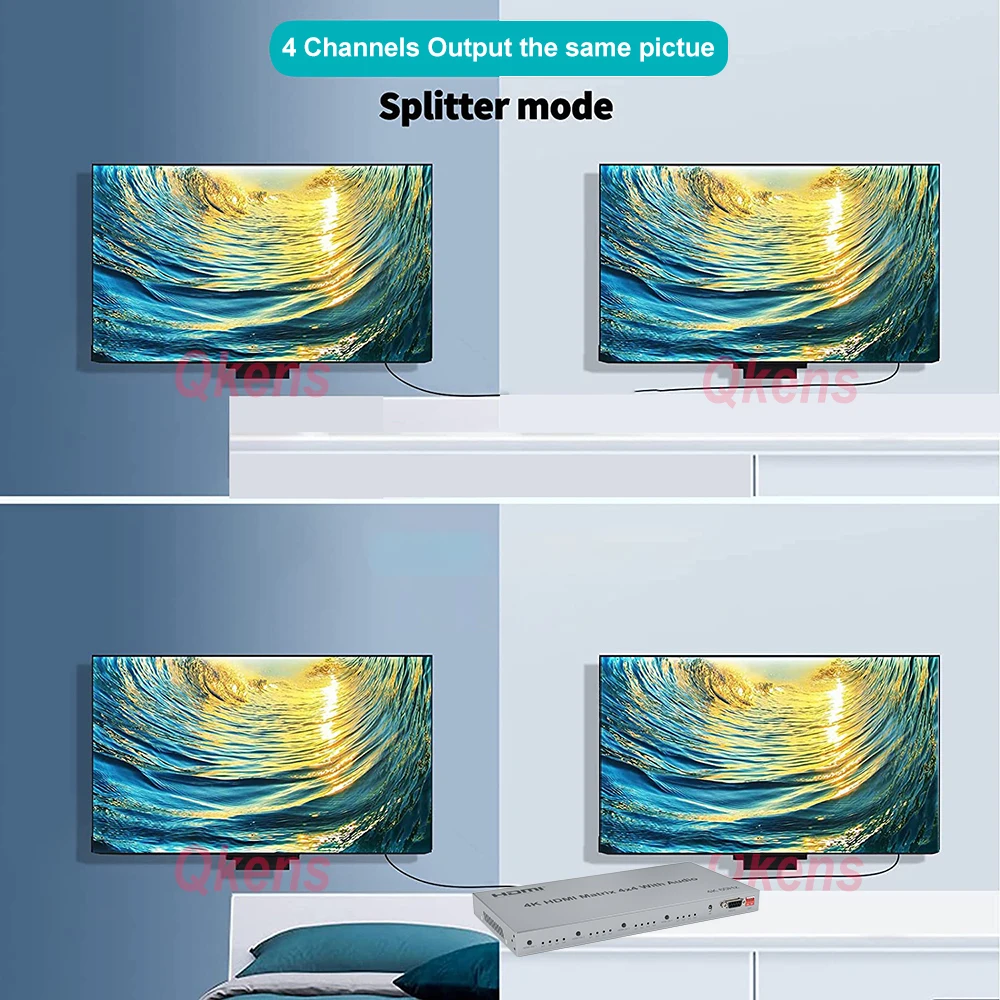

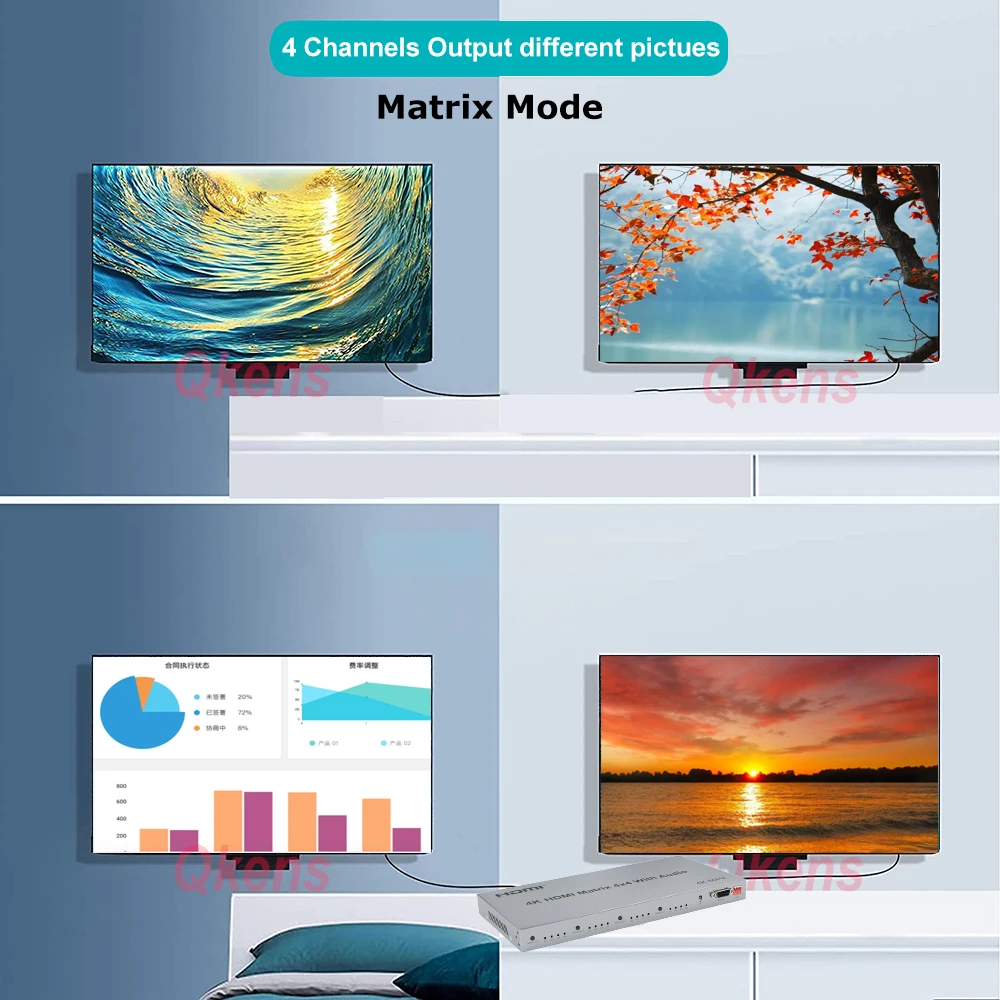

* The four outputs could show the same or different source simultaneously;
Specifications :
4K 60 Version HDMI resolution .............................................................. up to 4K/60Hz
4K 30 Version HDMI resolution .............................................................. up to 4K/30Hz
Support video format ......................................................................8/10/12 bit deep color
Support audio format ................... DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
4K 60 Version Max baud rate ....................................................................... 18Gbps
4K 30 Version Max baud rate ...................................................................3x3.4Gbps
Input cable distance ................................... 4K/30Hz ≤15M AWG26 HDMI standard cable
4K/60Hz ≤5M HDMI 2.0 standard cable
Output cable distance ................................. 4K/30Hz ≤15M AWG26 HDMI standard cable
4K/60Hz ≤5M HDMI 2.0 standard cable
HDMI Input ......................................................................................................... 4
HDMI Output ....................................................................................................... 4
Max working current ....................................................................................... 0.8A
Power adapter format .................. Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
Operating Temperature range .............................................................. (-15 to +45℃)
Operating Humidity range ............................................ 5 to 90%RH (No Condensation)
Dimension (L x W x H) .........................................................approx.276x143x26 (mm)
Weight ................................................................................................approx. 720g

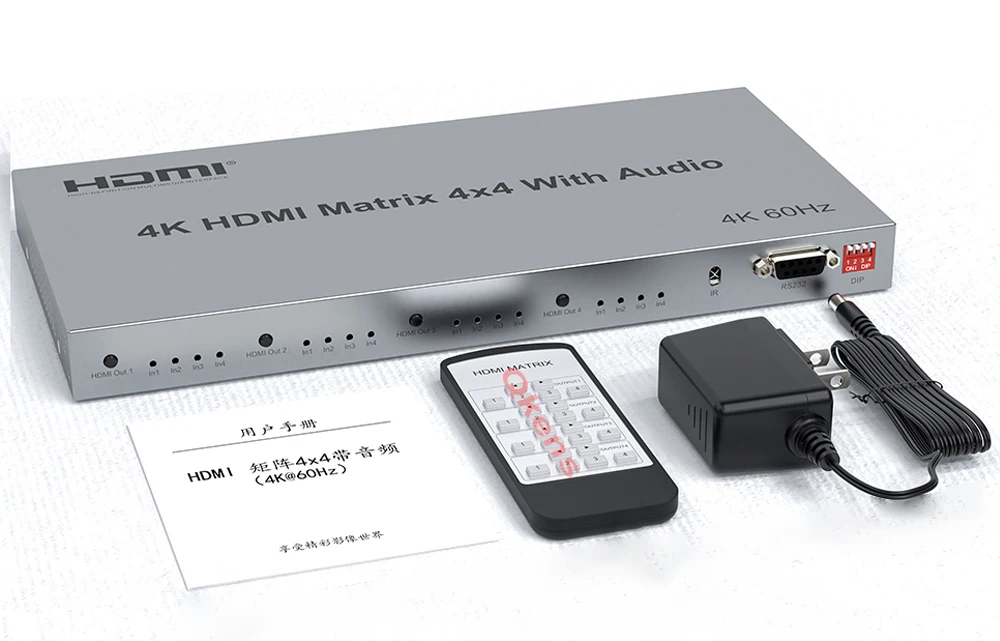

Package Accessories :
1. HDMI Matrix 4X4 1PCS
2. IR Remote Control without battery 1PCS
3. 12V power adapter 1PCS
4. User Manual 1PCS
without battery and other accessories,if any need,pls contact us first
